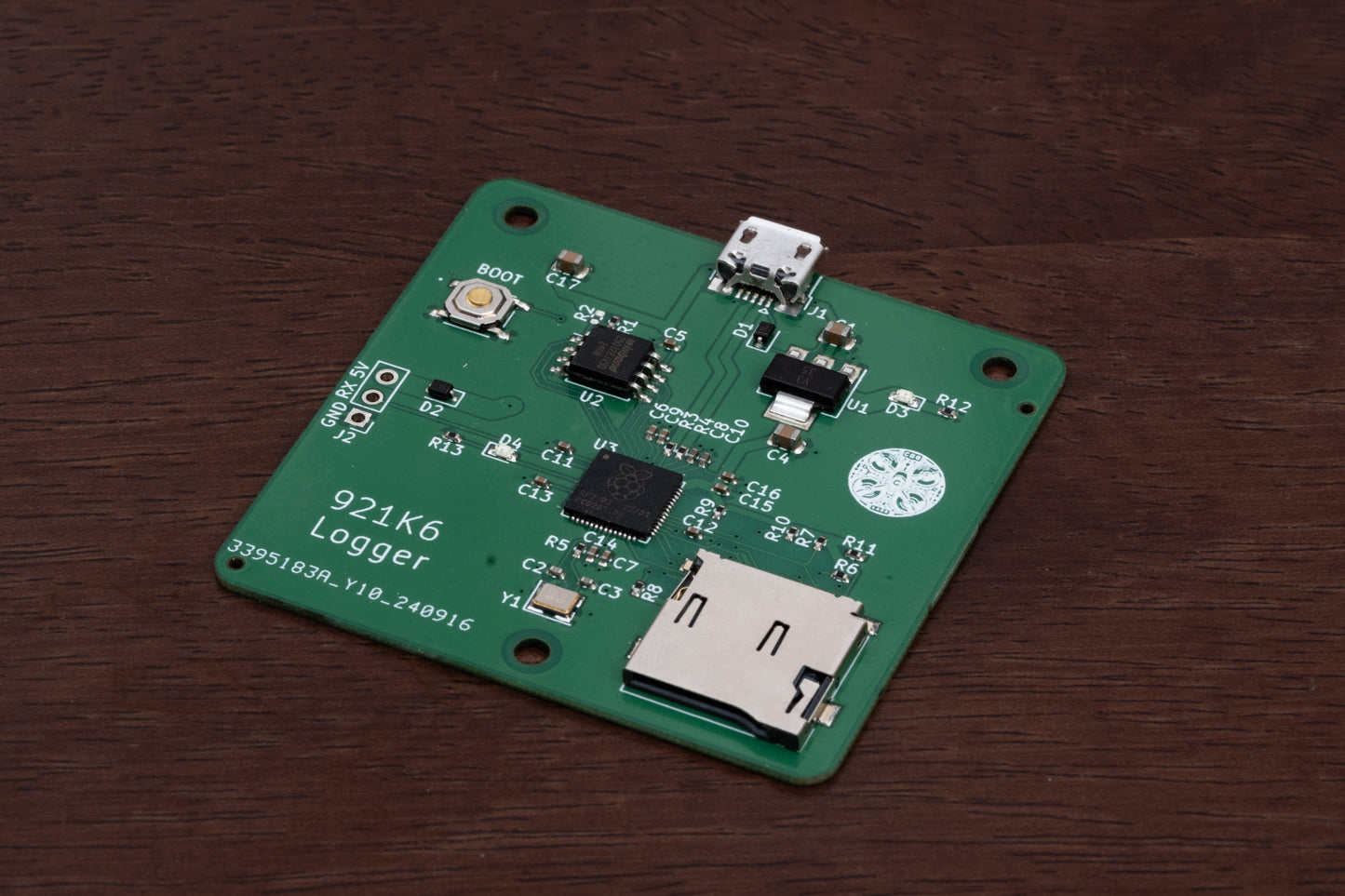

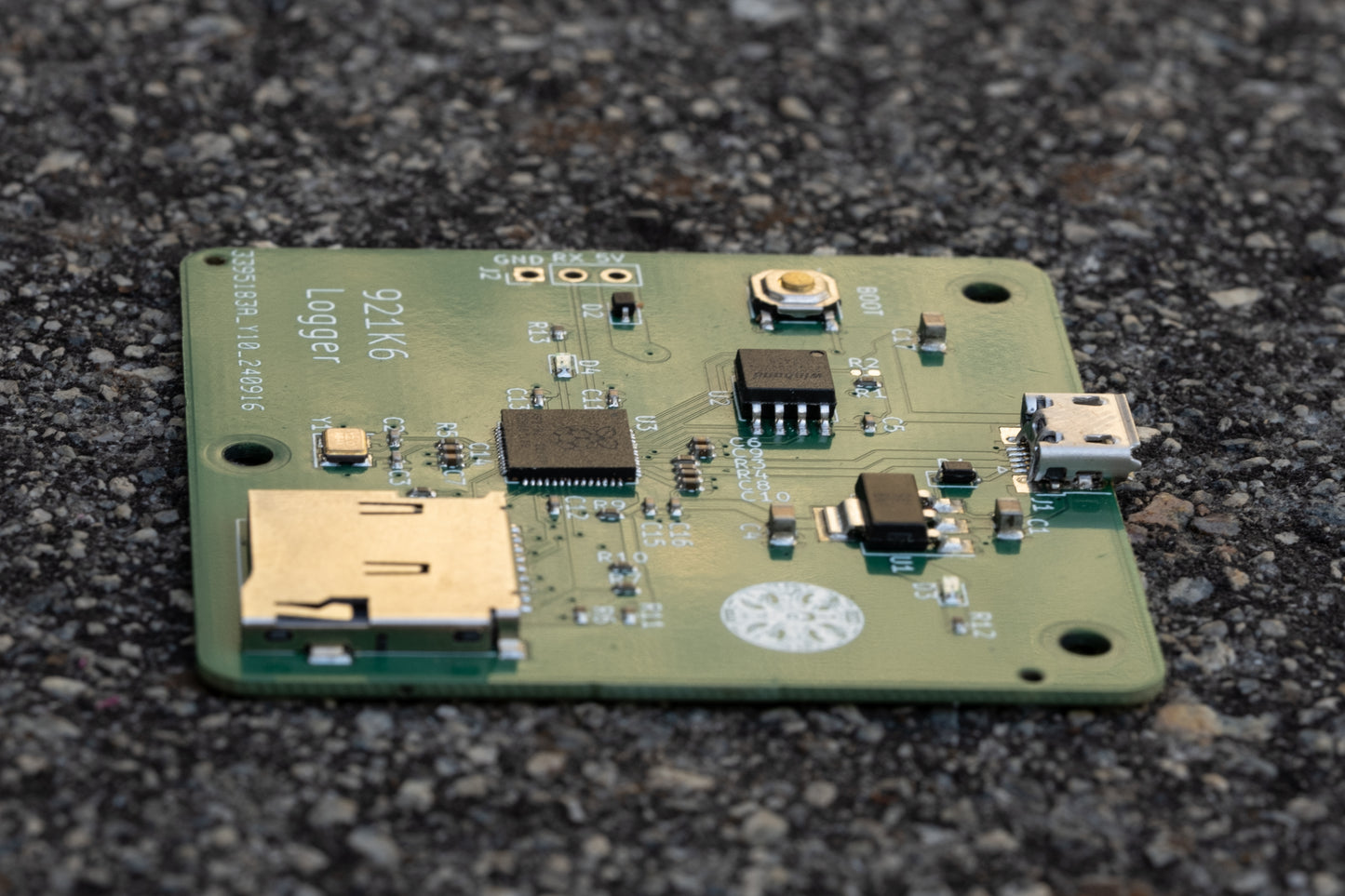

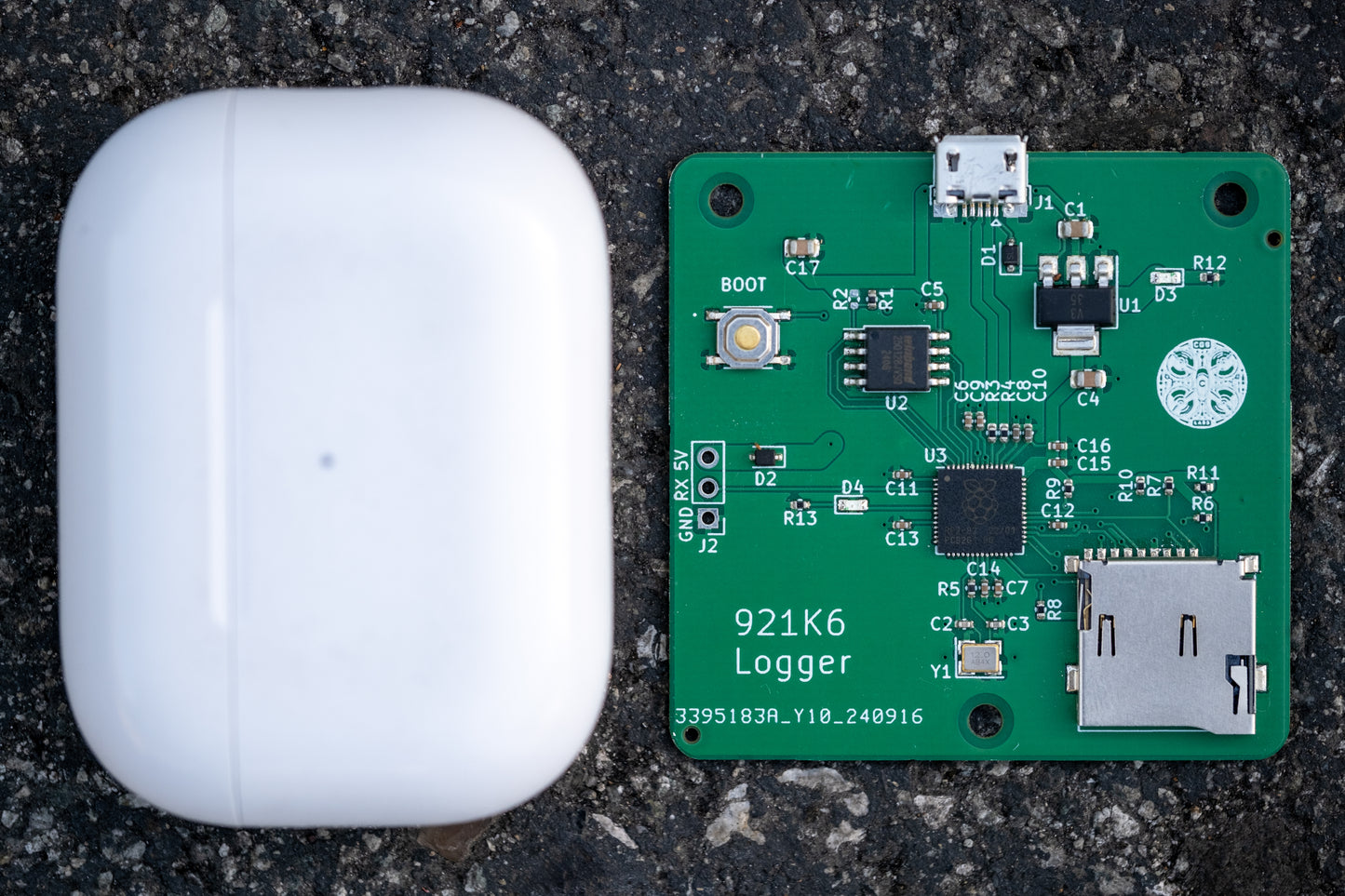

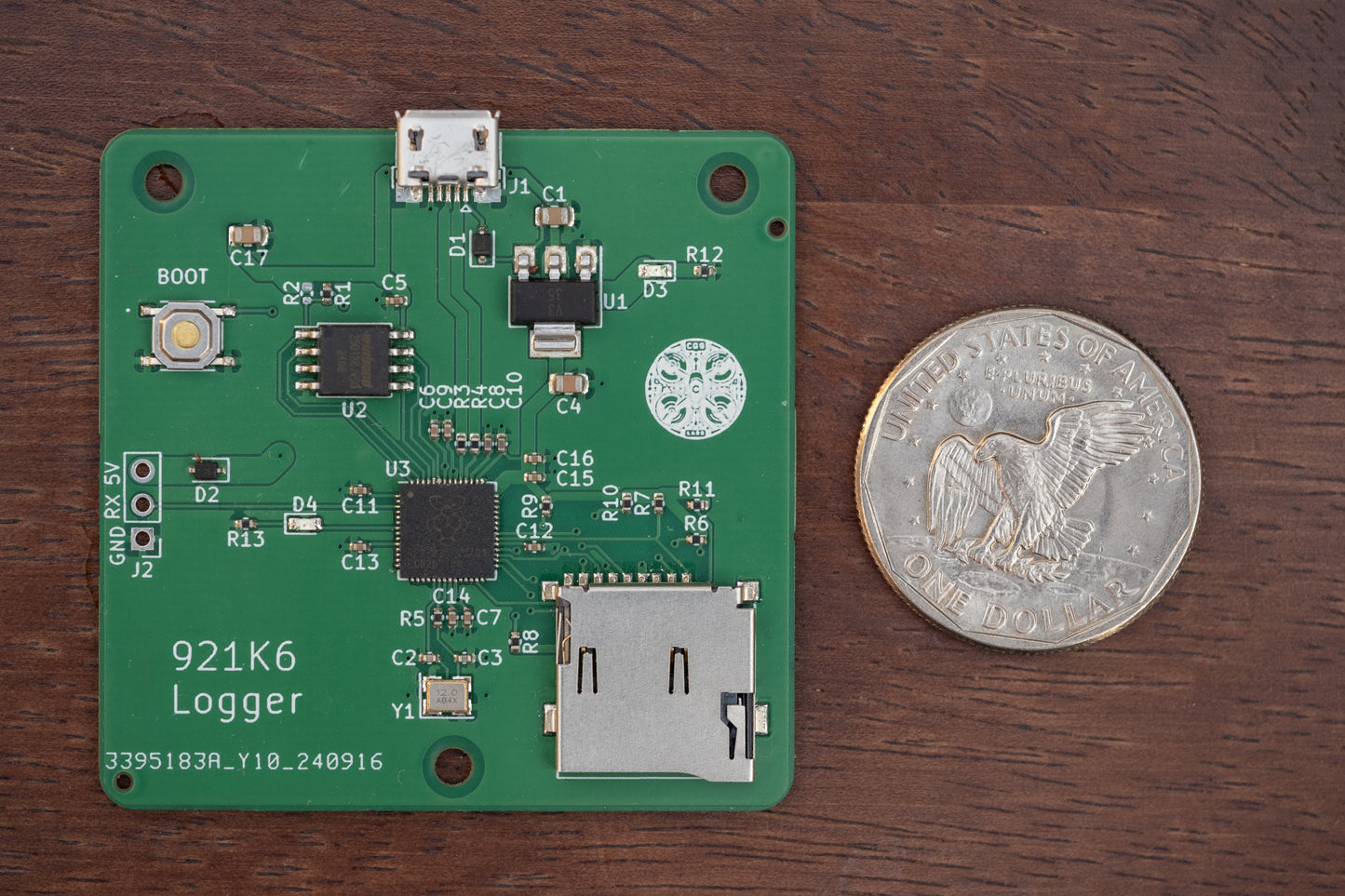

921k6 Serial Logger

Log all of your UART data to an SD card with just an RX wire.

• Supported Baud rates:

  9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600

• Power with USB micro or 5V GPIO
• exFAT SD Card required
• Configure baud rate by modifying auto generated settings.txt file on SD Card
• Red LED confirmation when logging begins

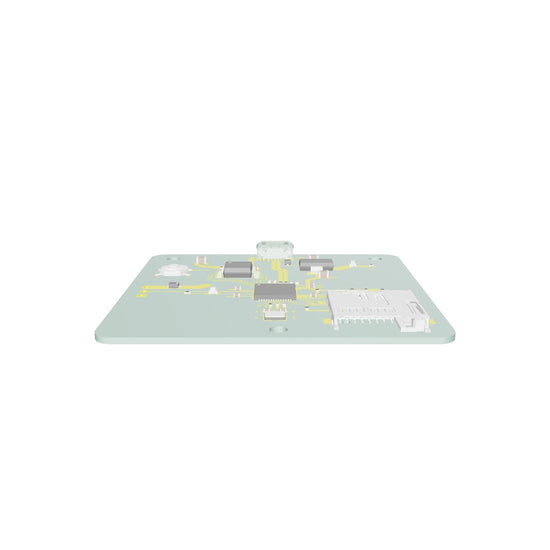

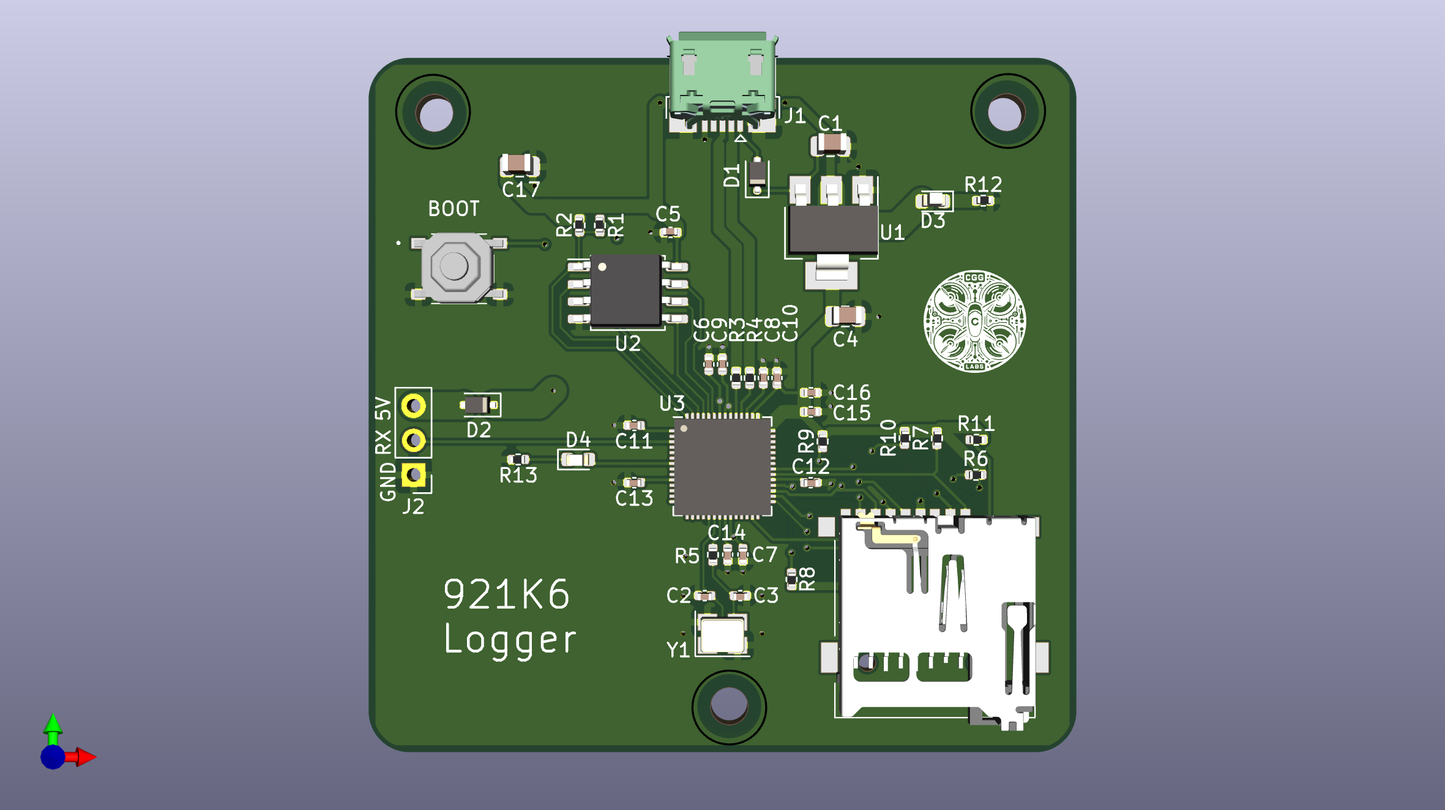

• 3D .Step File download available

How to use

1. Insert exFAT formatted SD Card
2. Power board by connecting USB or by connecting a 5V and GND to the labeled GPIO pins
3. (optional) Modify the generated settings.txt file on the SD Card to change the baud rate from the default of 921600
4. Connect data wire to RX labeled pin and start sending data!
